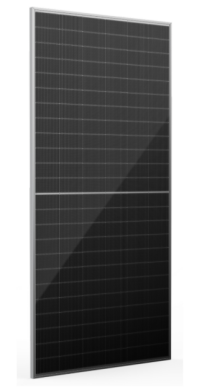

Solar battery RISEN RSM144-10-600BNDG

The Risen RSM144-10-600BNDG solar panel is a high-efficiency bifacial module using n-type TOPCon technology, offering enhanced power and durability. Suitable for commercial and industrial solar installations, it generates additional energy from the rear side and operates reliably across a wide temperature range.

Specifications:

• Power: 600 W (without bifacial gain)

• Efficiency: up to 22.6%

• Maximum system voltage: 1500 V DC

• Cell technology: n-type TOPCon, 144 cells (6×12+6×12)

• Temperature coefficient (Pmax): -0.29%/°C

• Operating temperature range: -40°C to +85°C

• PID and LID resistant

• Operating voltage (Vmpp): 43.25 V

• Operating current (Impp): 13.89 A

• Open-circuit voltage (Voc): 52.05 V

• Short-circuit current (Isc): 14.66 A

• Additional rear-side power gain: +10% (Pmax 660 W, Impp 15.28 A, Voc 52.24 V, Vmpp 43.40 V)

• Linear power warranty: 30 years

• Product warranty: 15 years

• Durable construction: anodized aluminum frame, anti-reflective glass

• High protection: IP68, built-in bypass diodes

• Dimensions: 2382×1134×30 mm

• Weight: 32 kg

• Cables: 4 mm², length 350 mm (+), 230 mm (-)
