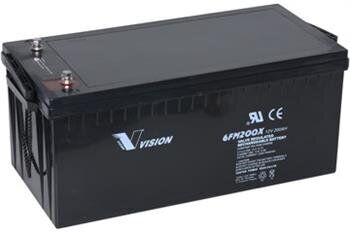

Accumulator battery Vision 6FM200P-X

Performance characteristics of the battery:
rated voltage - 12 V
Number of cells - 6 pc

Rated capacity (at 25 ° C):.
- 10 hours (current A discharge 20 when falling to 10.8) - 200 A / h
- 5 hours (discharge current is 36 A when falling to 10.5) - 180 A / h
- 1 hr (current a discharge 124 when falling to 9.60 V) - 124 a / h

dimensions (w * d * c): 246h238h526
mm Weight 59.5 kg

battery Features:
- Consistent quality and highest reliability
- Hermetically sealed
- AGM-technology
- Maintenance-free design
- Low internal pressure < br /> - Low self-discharge
- Lifetime - 10 years

Internal resistance:
- fully charged battery (at 25 ° C) - 4 milliohms
- Samoryazryad - 3% of the nominal capacity per month at 20 ° C

Operating temperature:
- during the discharge - 20 ~ 60 ° C
- when charging the - 10 ~ 60 ° C < br /> - Storage - 20 ~ 60 ° C
· Maximum discharge current at 25 ° C - 1000 A (5 sec)
- short circuit current - 4300 A
- Maximum charge current - 60 A
